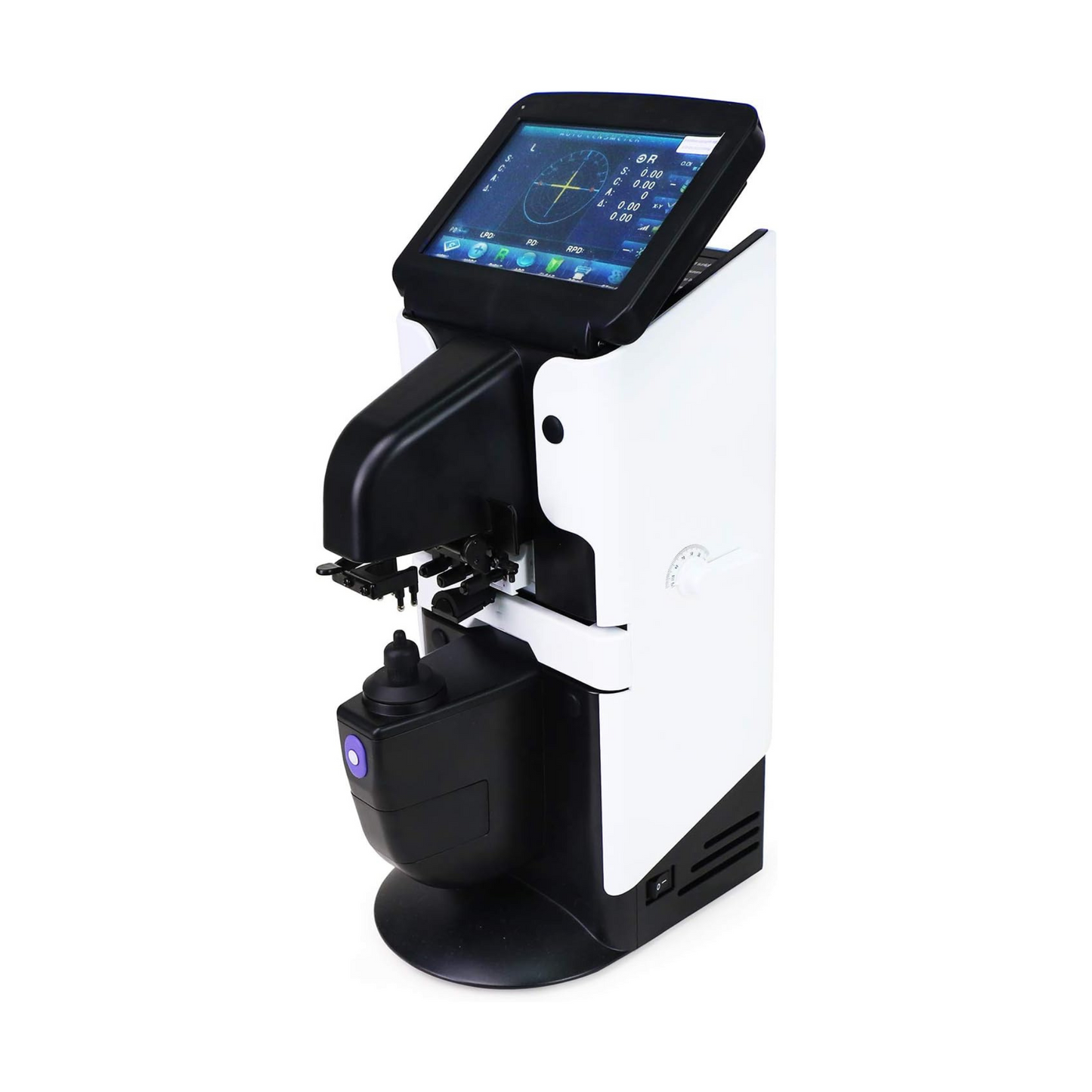

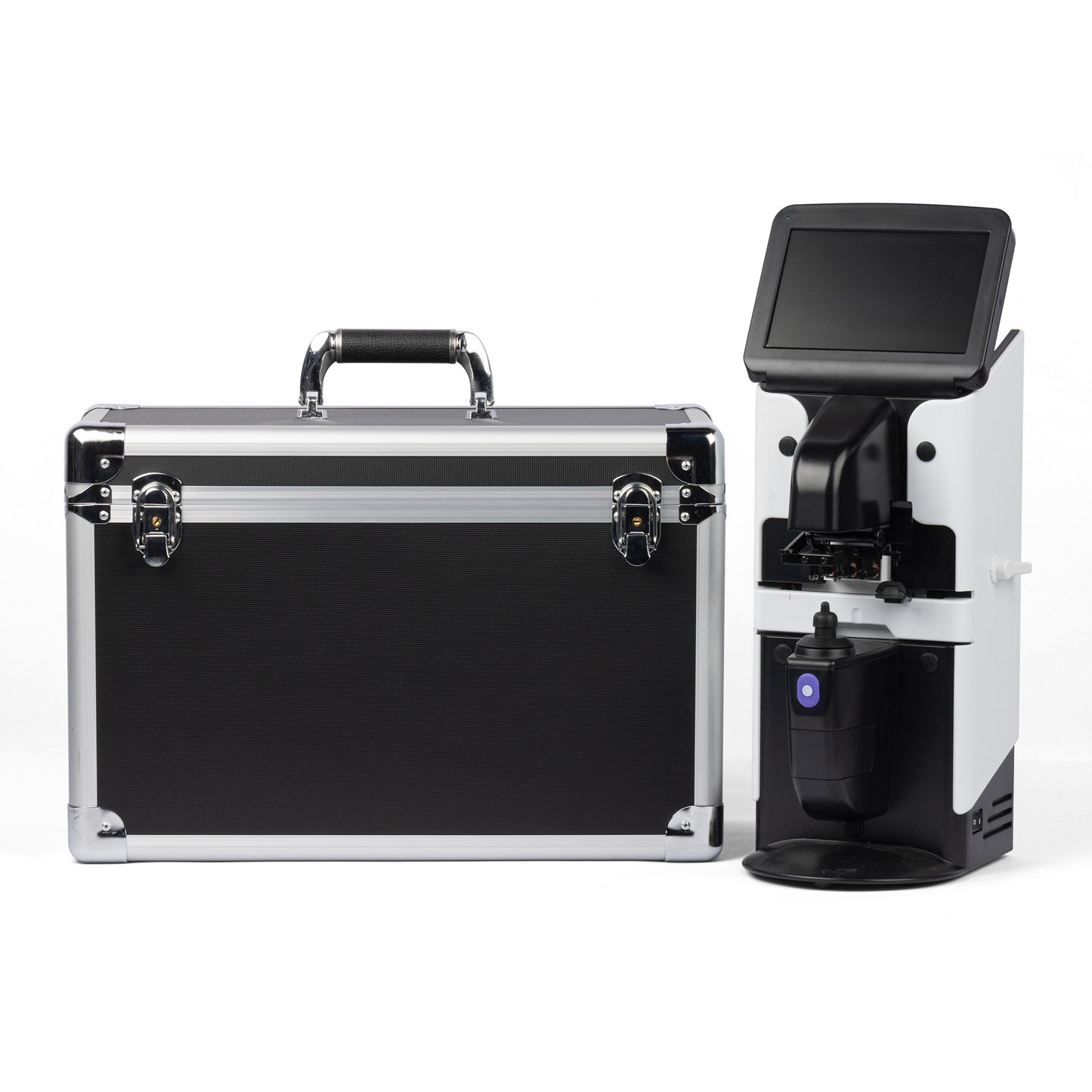

Auto Lensmeter Optical Lensometer Focimeters 5.6" / 7'' Touch Screen with Printer FDA Certification

  • $819.00
  • Save $150.00



This type auto lensmeter could be used measure SPH,CYL,AXIS,ADD, PD,UV and so on, it also has printer function.

Feature

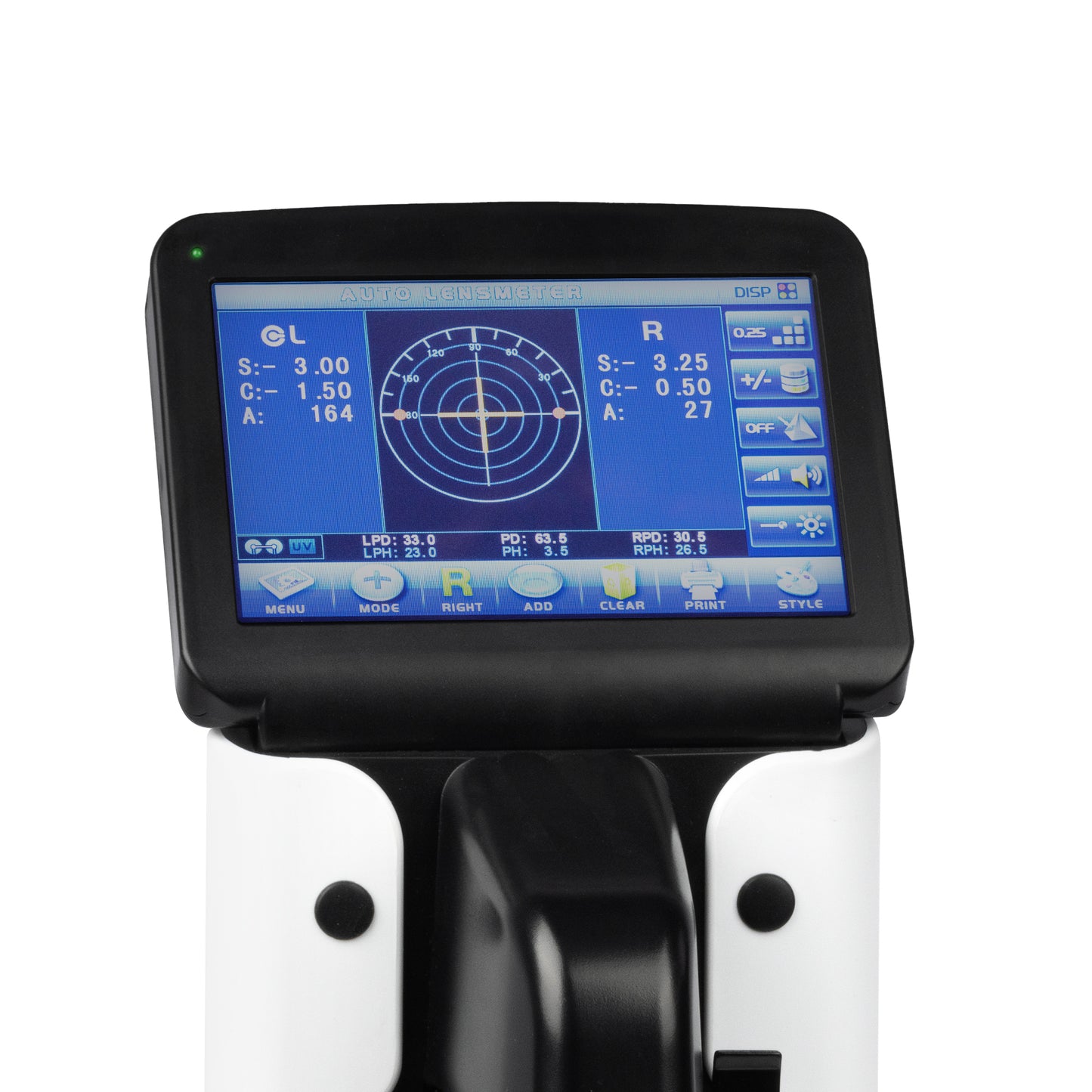

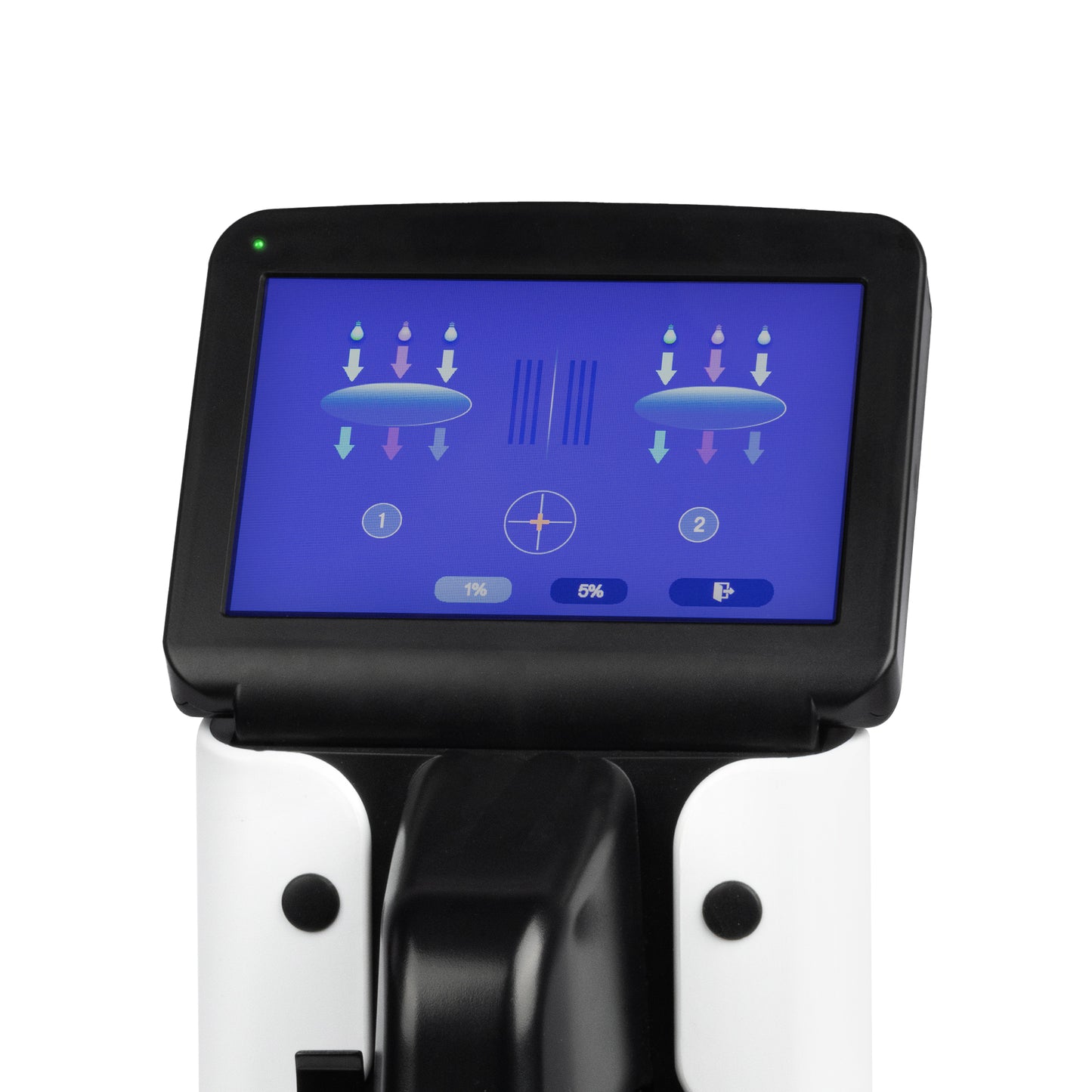

  • Simple Graphical UI:Measurement screen is easy to use with recognizable icons.

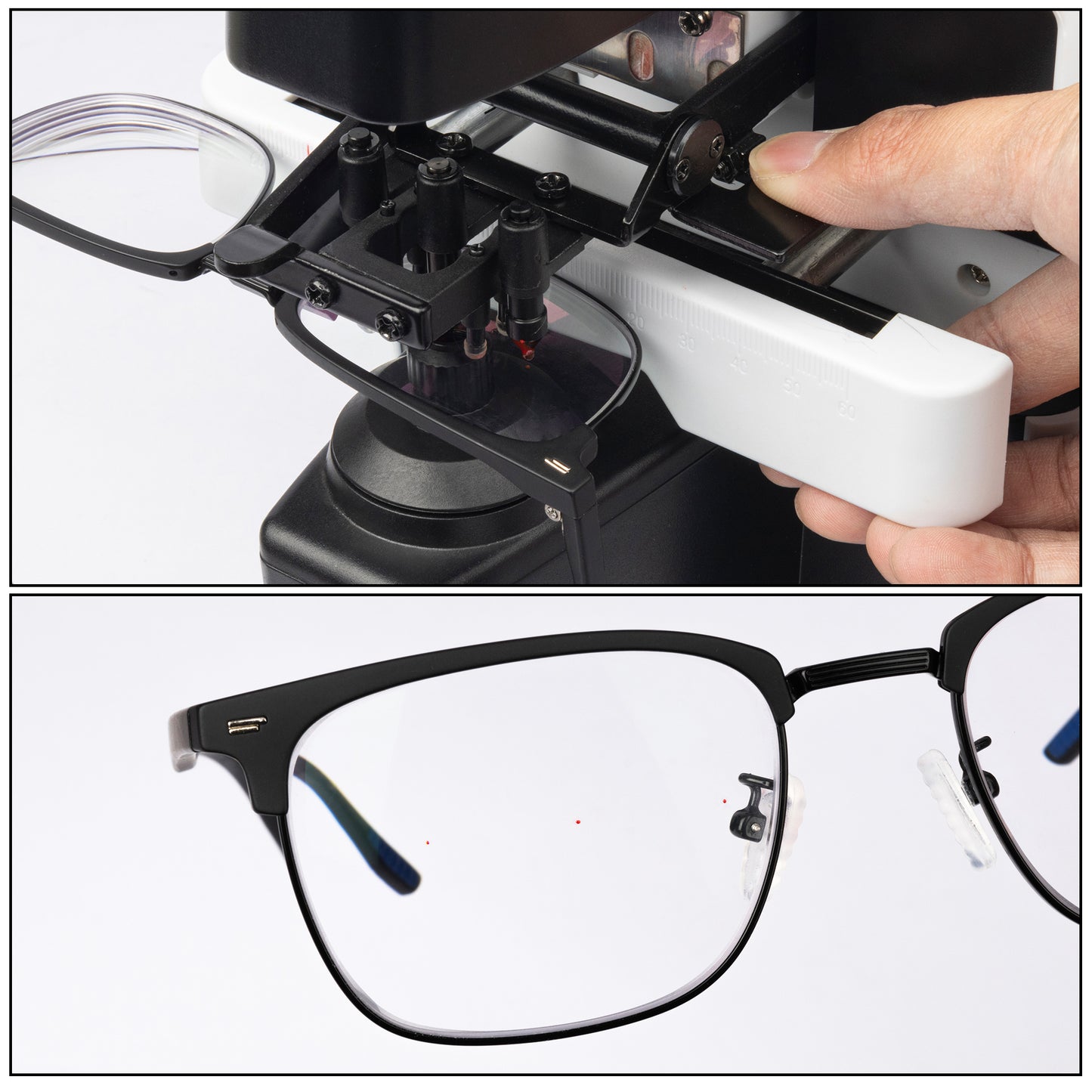

  • Various lenses measured available: such as single lens, progressive lens and contact lens.
  • Can automatically recognise single and progressive lens.
  • Function: measure SPH, CYL, AXIS, ADD, Prism Power, PD, UV
  • High measurement precision: Hartmann sensor with “the multiple area measurement of 108 points” and LED green light source, which minimizes the measurement error.
  • Display: 5.6"/7" TFT tilting LCD Touch screen, 20-85 ° adjustable, which allows you to work at different position, such as standing or sitting.

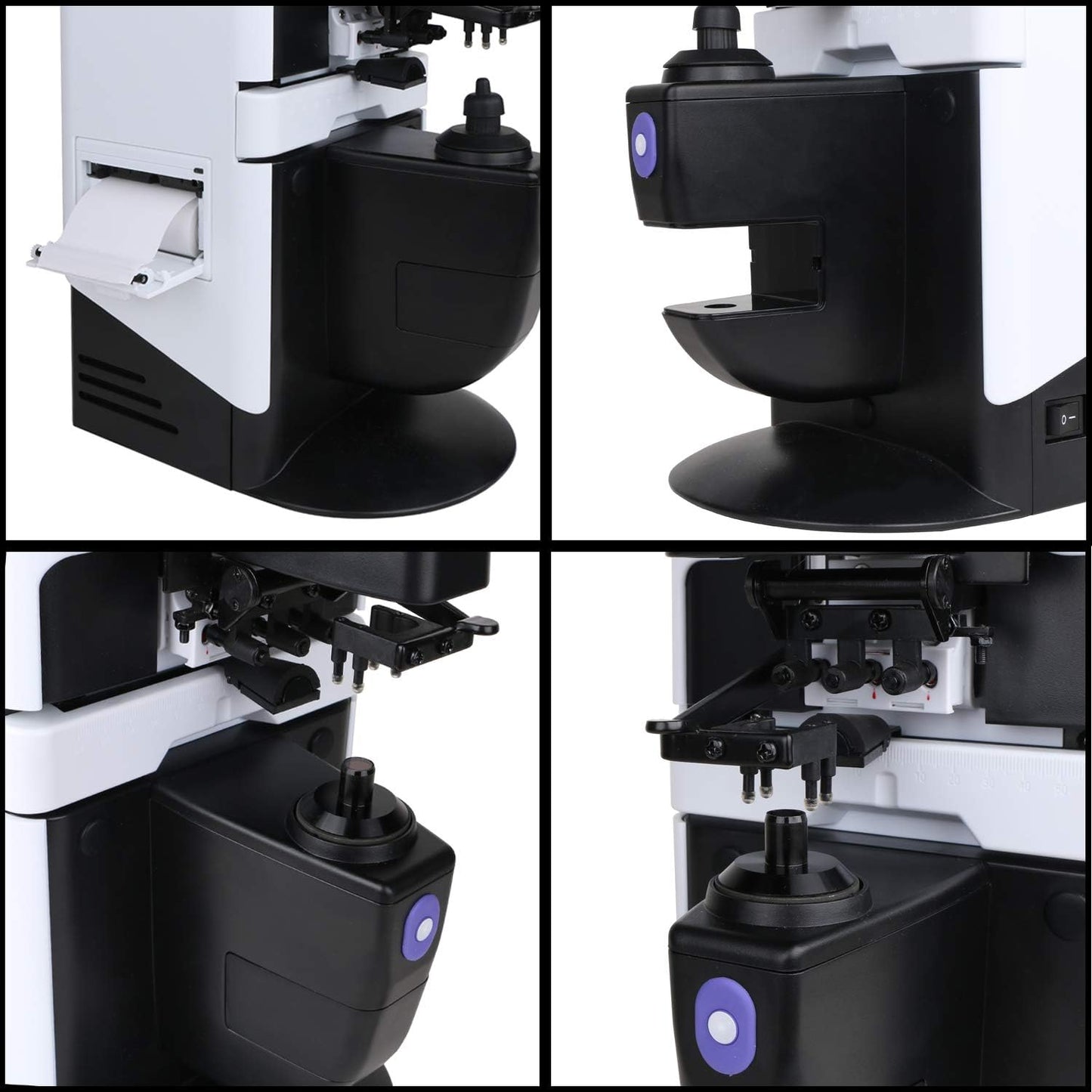

  • Built-in thermal printer
  • Auto memory and auto screen save:the data memory has a storage button for recording data.
  • The form of data communication: RS232 serial port.
  • Certification and warranty: FDA, CE certification and one year warranty

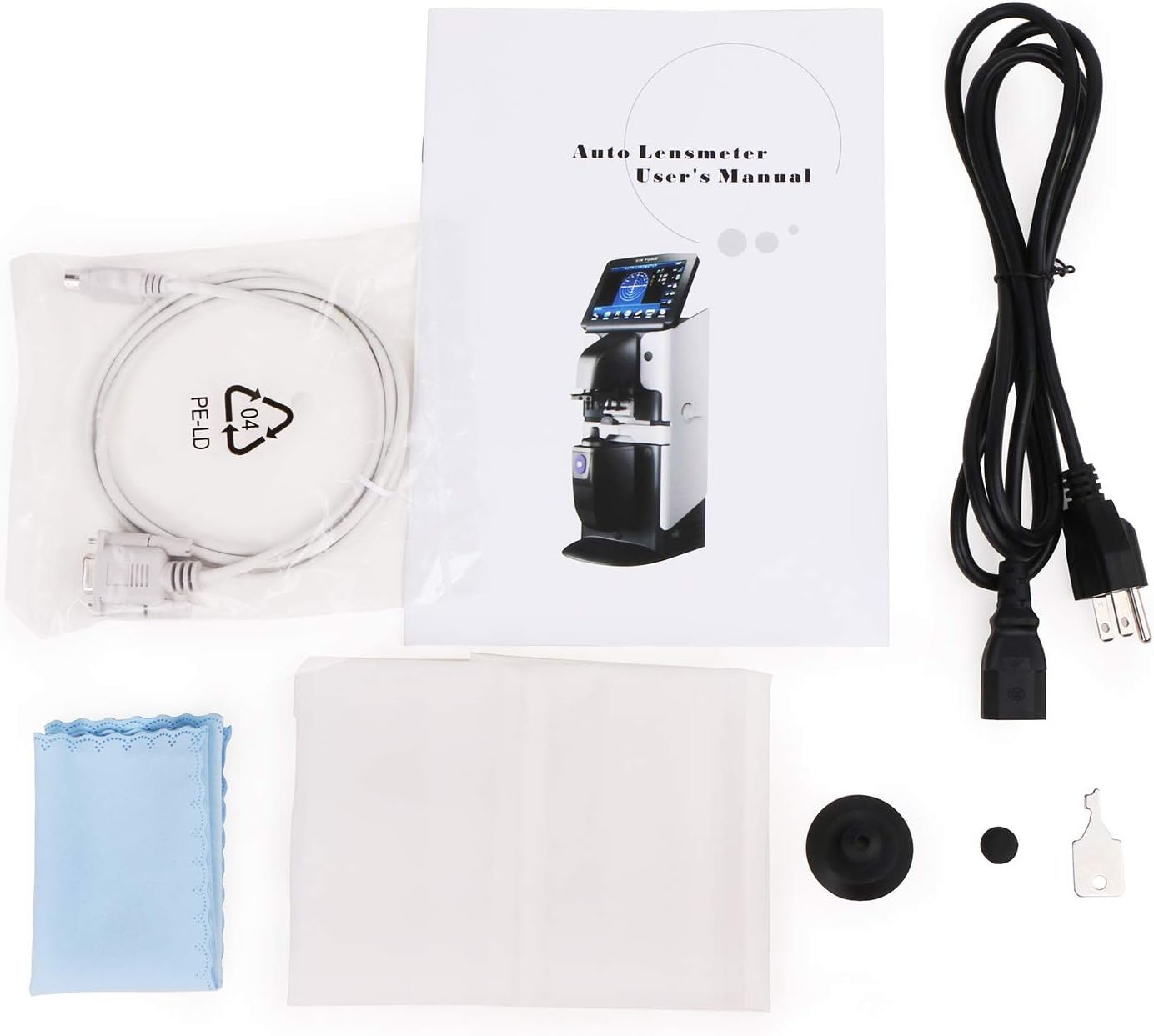

Accessories

 Item Description Item Description
Printer paper 1 Lens support 1;for contact lens
Spare fuses 1 User's manual 1
Dust cover 1 Ink

1;not available in air transport

Microfibre cloth 1 Power cord 1



JD-2000 VS JD-2600A/JD-2600B VS D-910

JD-2000 is a basic auto lensmeter. JD-2600A/JD-2600B is superior to JD-2000 and has higher measurement accuracy. D-910 is a comprehensive upgraded version of JD-2600 series, with better performance, better display screen, higher measurement accuracy, and more optional data communication methods.

For ordinary users, we recommend purchasing JD-2600A/JD-2600B.Of course, you can choose according to your needs.

Specifications

Model JD-2600A/JD-2600B
Measurement Range
Sphere  0 ~ ±25 D,0.01/0.12/0.25 D step
Cylinder ~ ±9.99 D,0.01/0.12/0.25 D step
Axis 0 ~ 180° (1° step)
Add. ~ +9.99 D,0.01/0.12/0.25 D step
Prism degree ~ 15 D,0.01/0.12/0.25 D step
Measurement Mode
Cylinder  +, -, ±
Prism X_Y, P-B
Contact lens soft/hard lens
Measuring mode single lens/progressive lens/contact lens (automatic recognition)
Specifications
Diameter of lens Φ20 ~ Φ108 mm
PD 45 90 mm, 0.5 mm steps
Speed of measurement 0.1 s
Light source LED Green Source
Wavelength  545 nm
ABBE Value  30 ~ 60, no need  to set
Display

JD-2600A:7" TFT LCD; JD-2600B:5.6" TFT LCD

Tilting Touch Screen

UV Y
Data communication RS232 serial port
Printer Thermal Printer

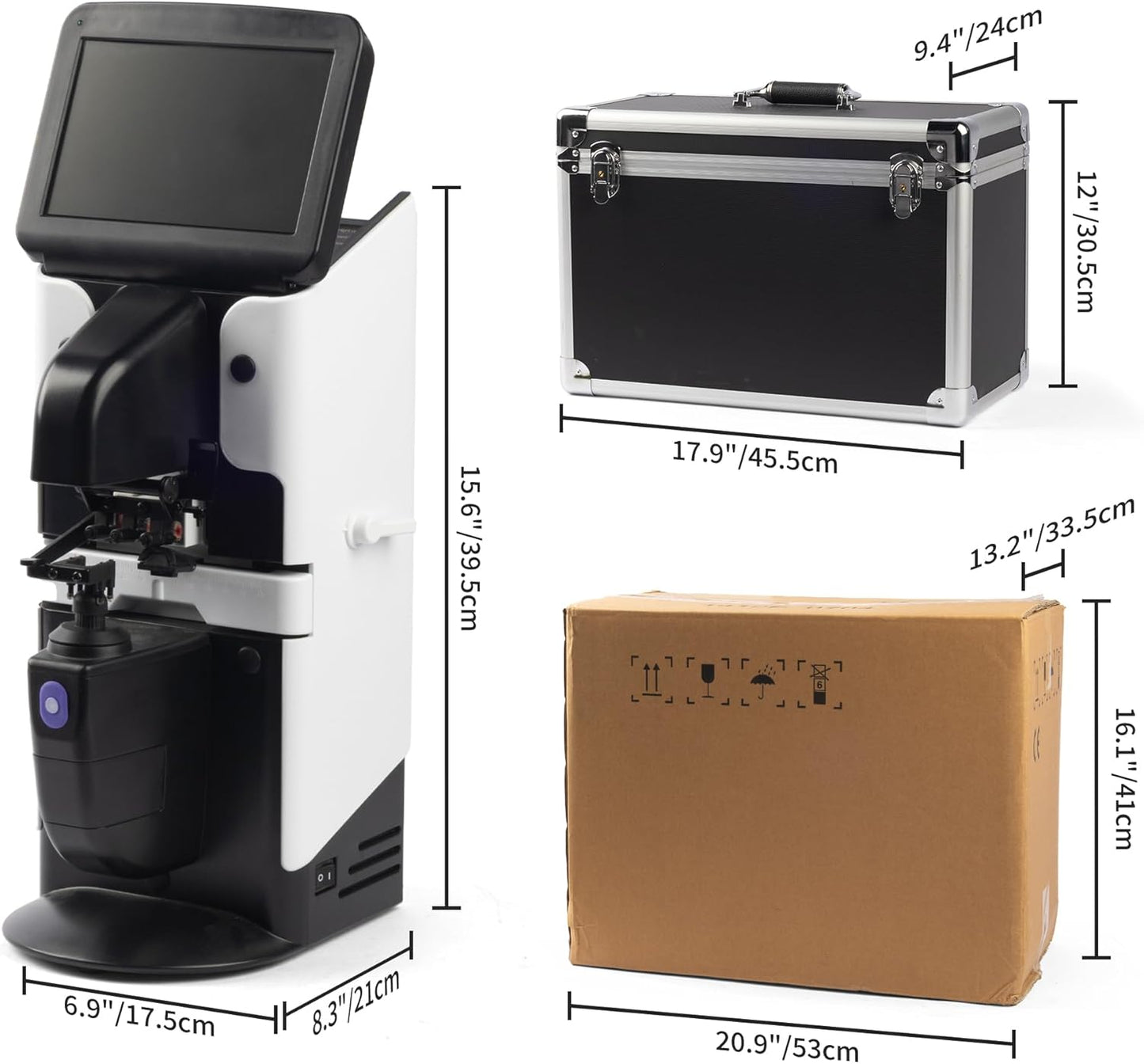

Dimension 222 × 161 × 372 mm

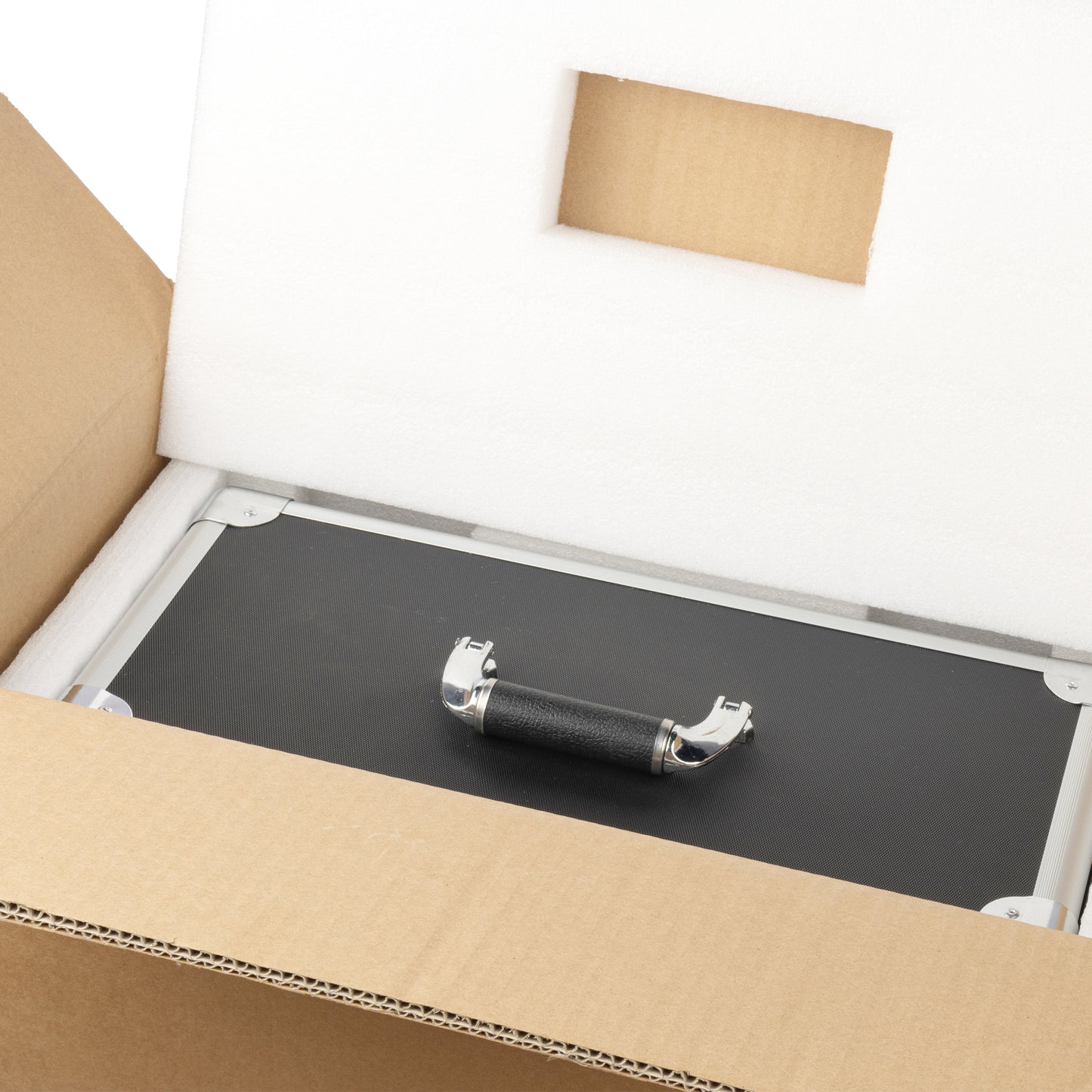

Package 515 × 320 × 390 mm
Weight 10kg
Power supply AC 100 ~ 240 V, 50/60 Hz
