Manual Lens Grinder Optical Hand Edger 35WV Single Wheel DC Motor

Manual Lens Grinder Optical Hand Edger 35WV Single Wheel DC Motor

SKU:JFEGE00033

Regular price $139.00 USD
Regular price Sale price $139.00 USD
Sale Sold out
Shipping calculated at checkout.

12 in stock

Shipping & Delivery

Ships from the USA:

  • Processing time: 1–2 business days
  • Shipping time: 2–5 business days

Ships from China:

  • Processing time: 2–7 business days
  • Shipping time: 7–14 business days

For more details, please see our Shipping Policy

Shipping Costs

The shipping cost for your order will be calculated at checkout based on the product weight.

View full details

Description

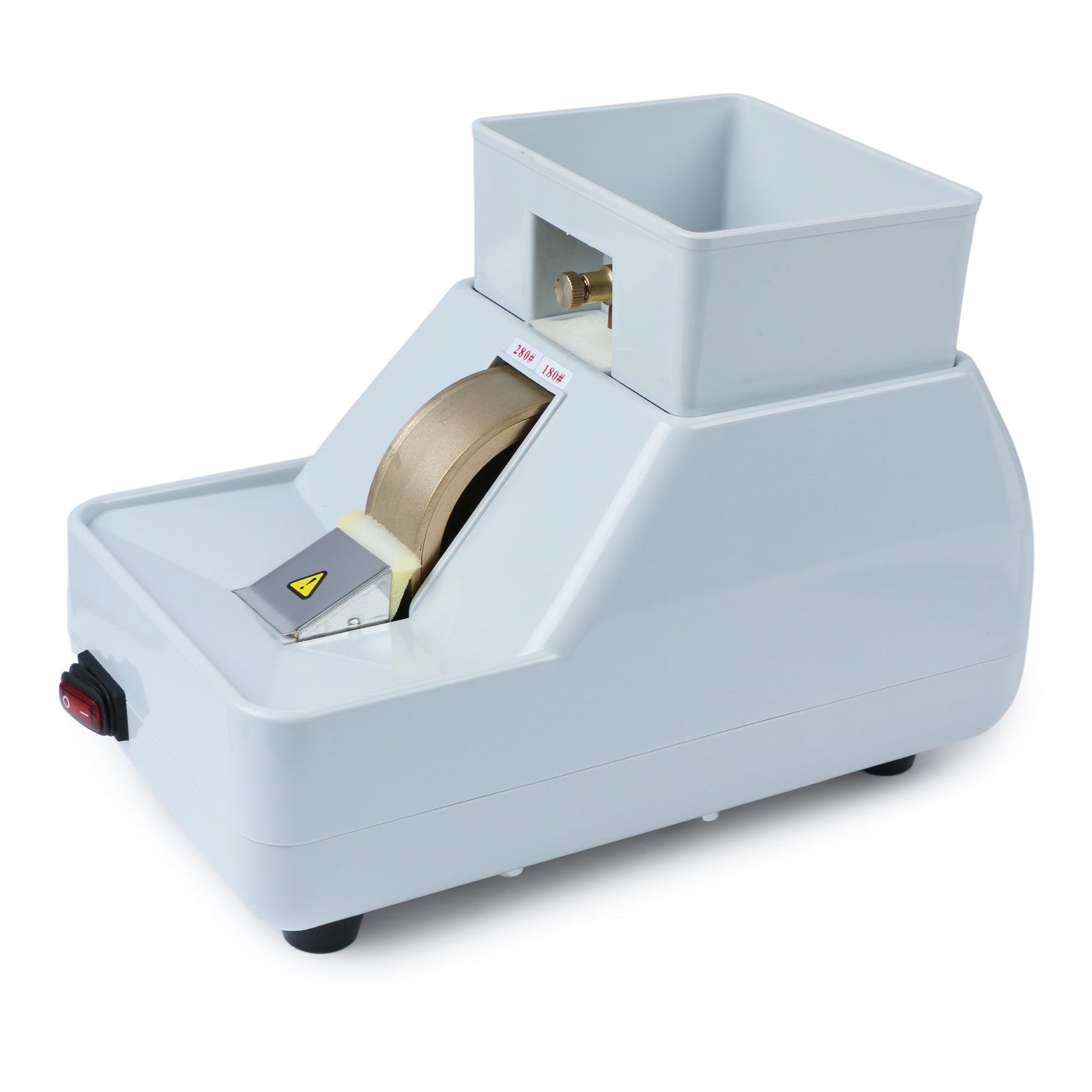

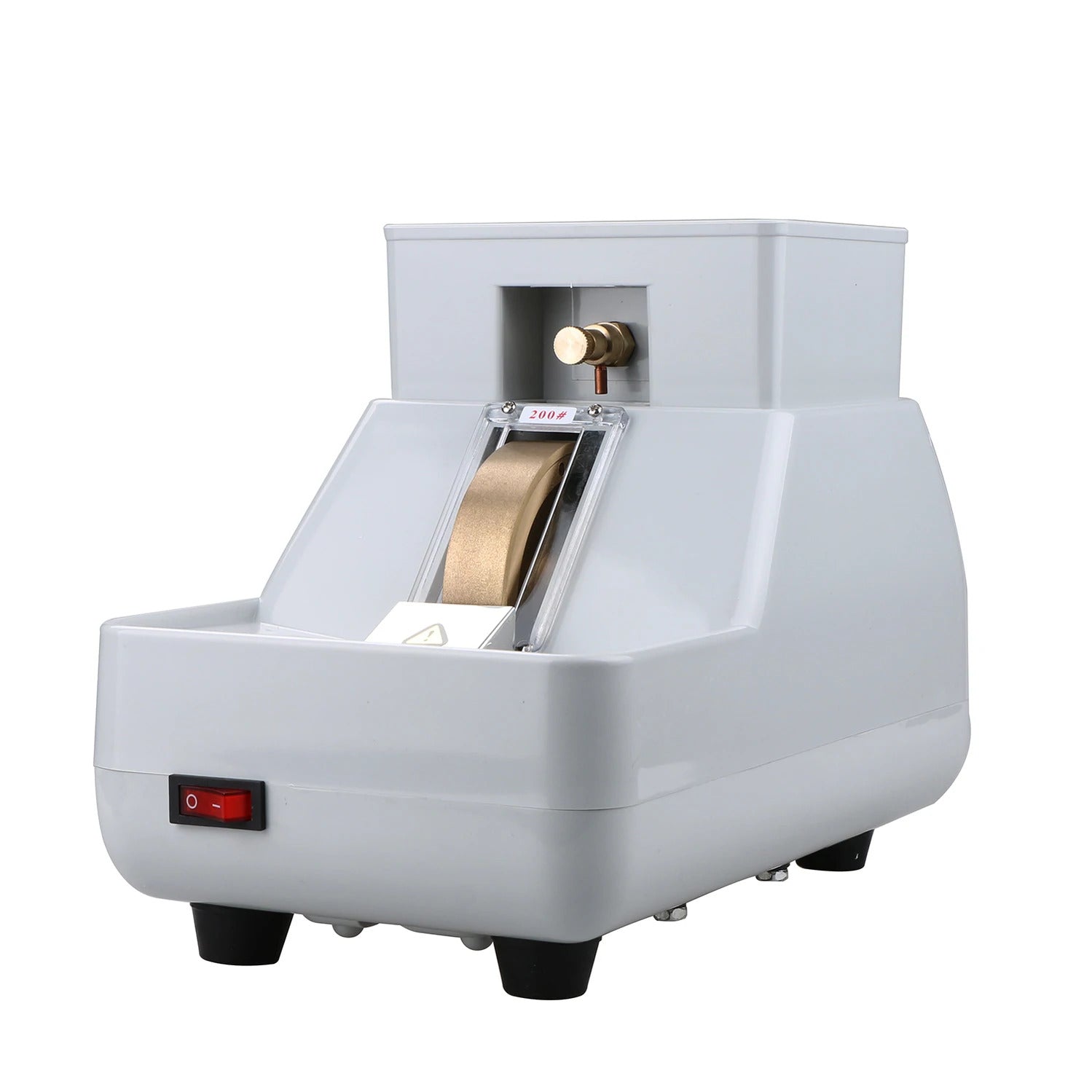

This single grinding wheel manual lens edger features a 35mm-wide wheel that provides options for coarse grinding, fine grinding, and a V-shaped bevel edge groove. The wheel operates at a speed of 5500-6000 r/min. The device is equipped with a pure brass water valve and two detachable water tanks. The dual stand enhances stability during use, and the water-blocking plate prevents water splashes. This basic unit is suitable for grinding eyeglass lenses made from standard materials. This product ships from: United States / China.

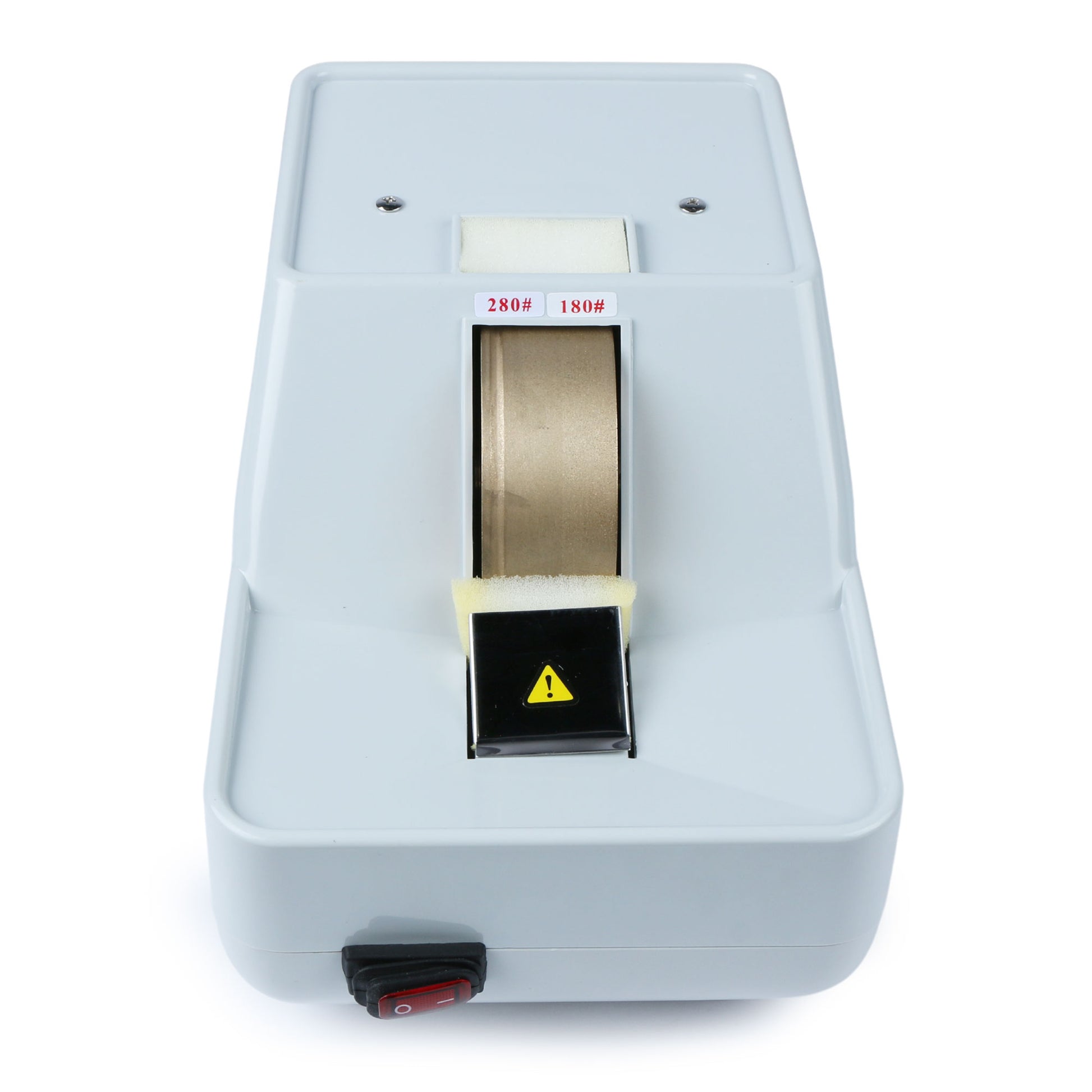

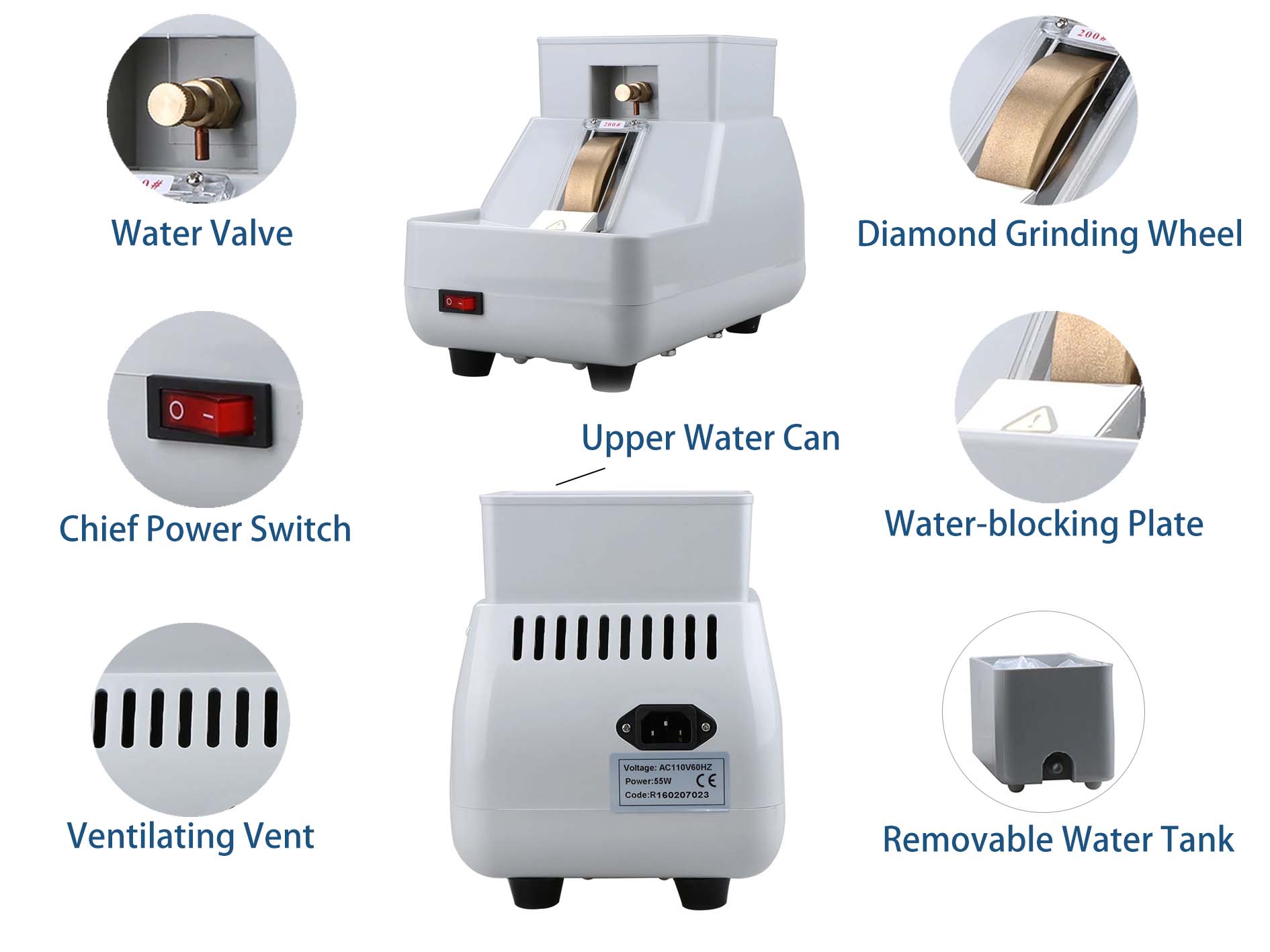

  • Diamond grinding wheel: durable; single wheel with a width of 35mm, featuring a rough grinding of 16mm on the right (180#), a fine grinding of 19mm on the left (240#), and an edge truing groove.

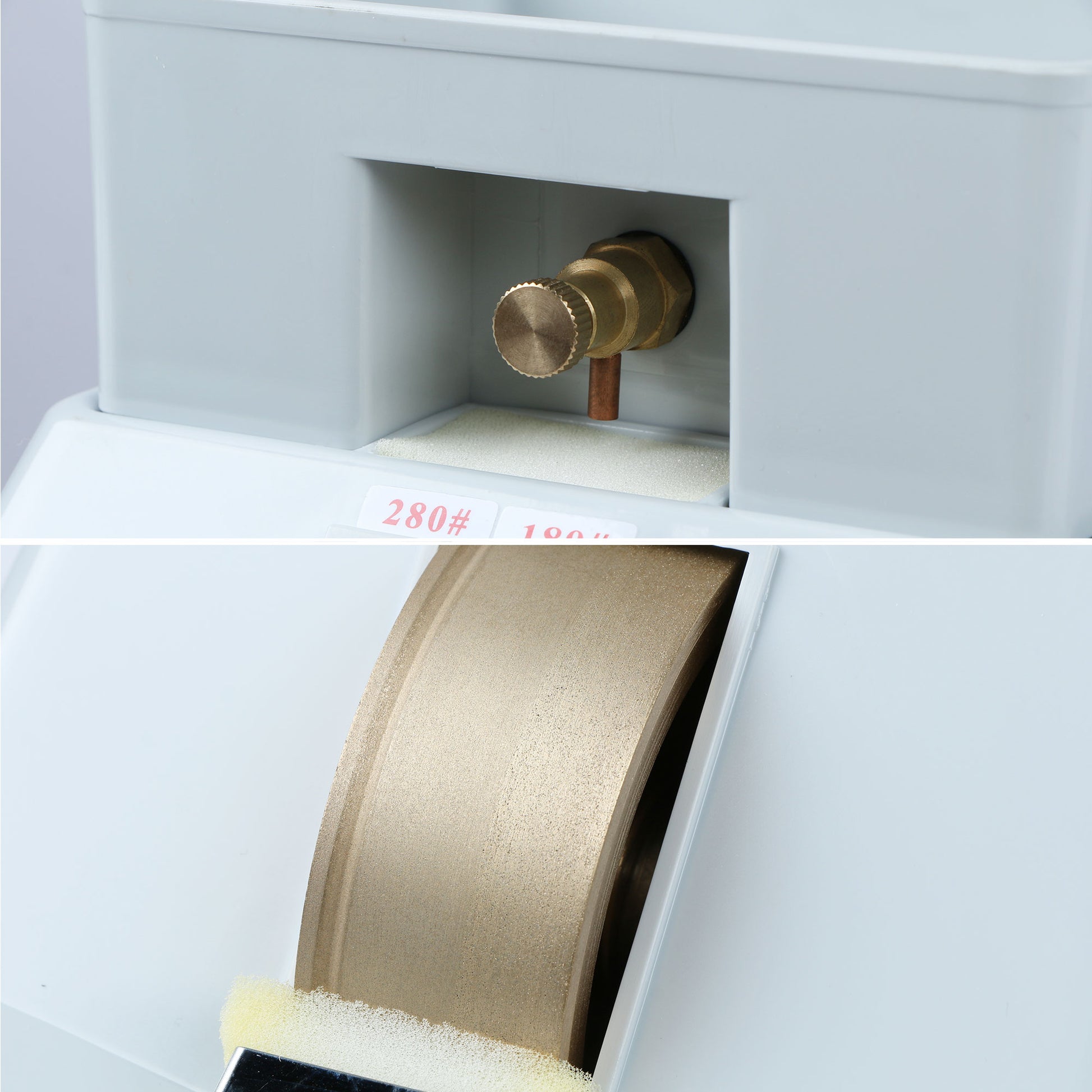

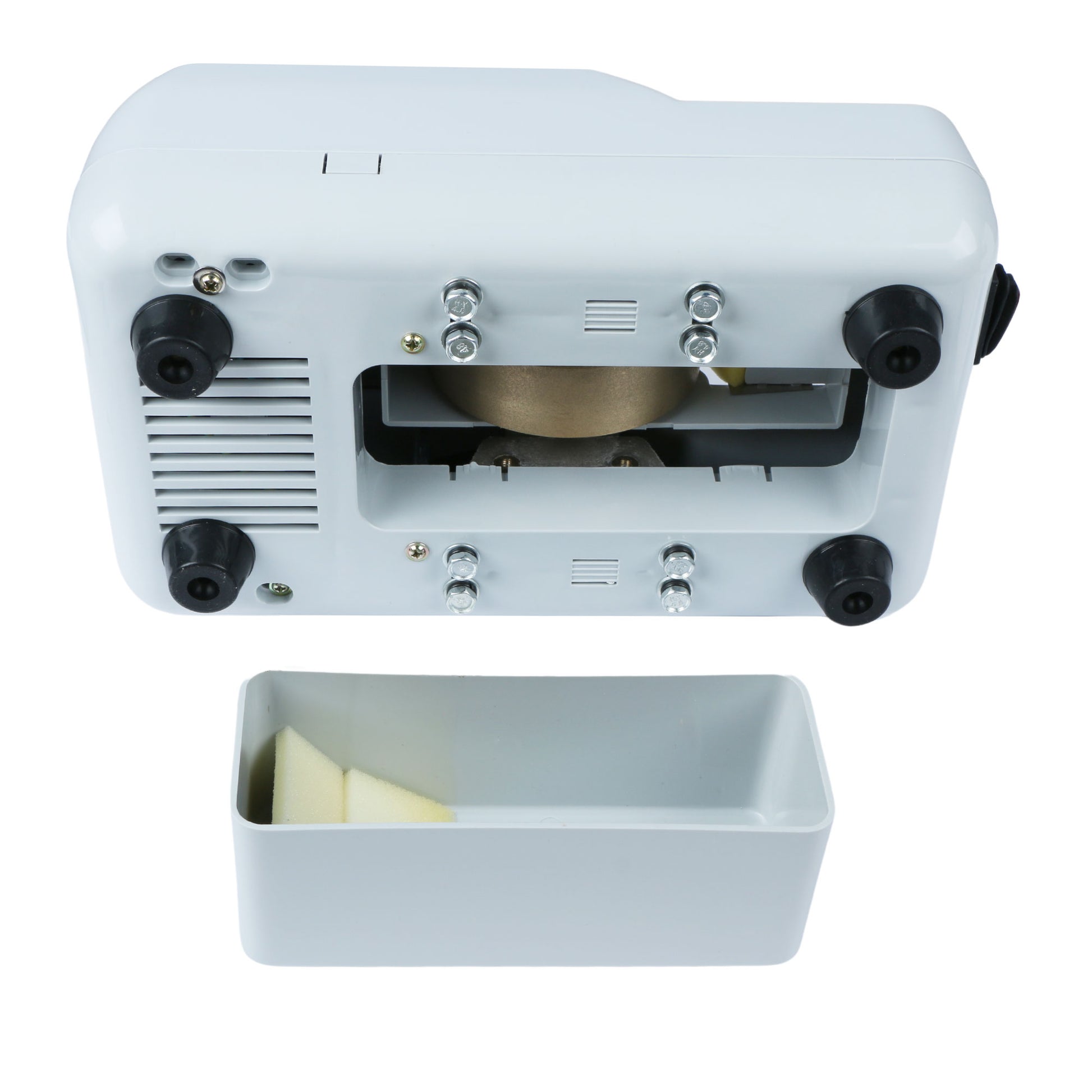

  • Water can: equipped with upper and lower water cans, both of which are removable and convenient for water replacement. The upper water can has a pure copper water valve for adjusting the water output, while the lower water can is connected to a drainage pipe for discharging wastewater.
  • Double bracket and water-blocking plate: the double bracket offers high stability, while the water-blocking plate reduces water splashing.
  • Grindable materials: resin, glass, PC, stone, and more.

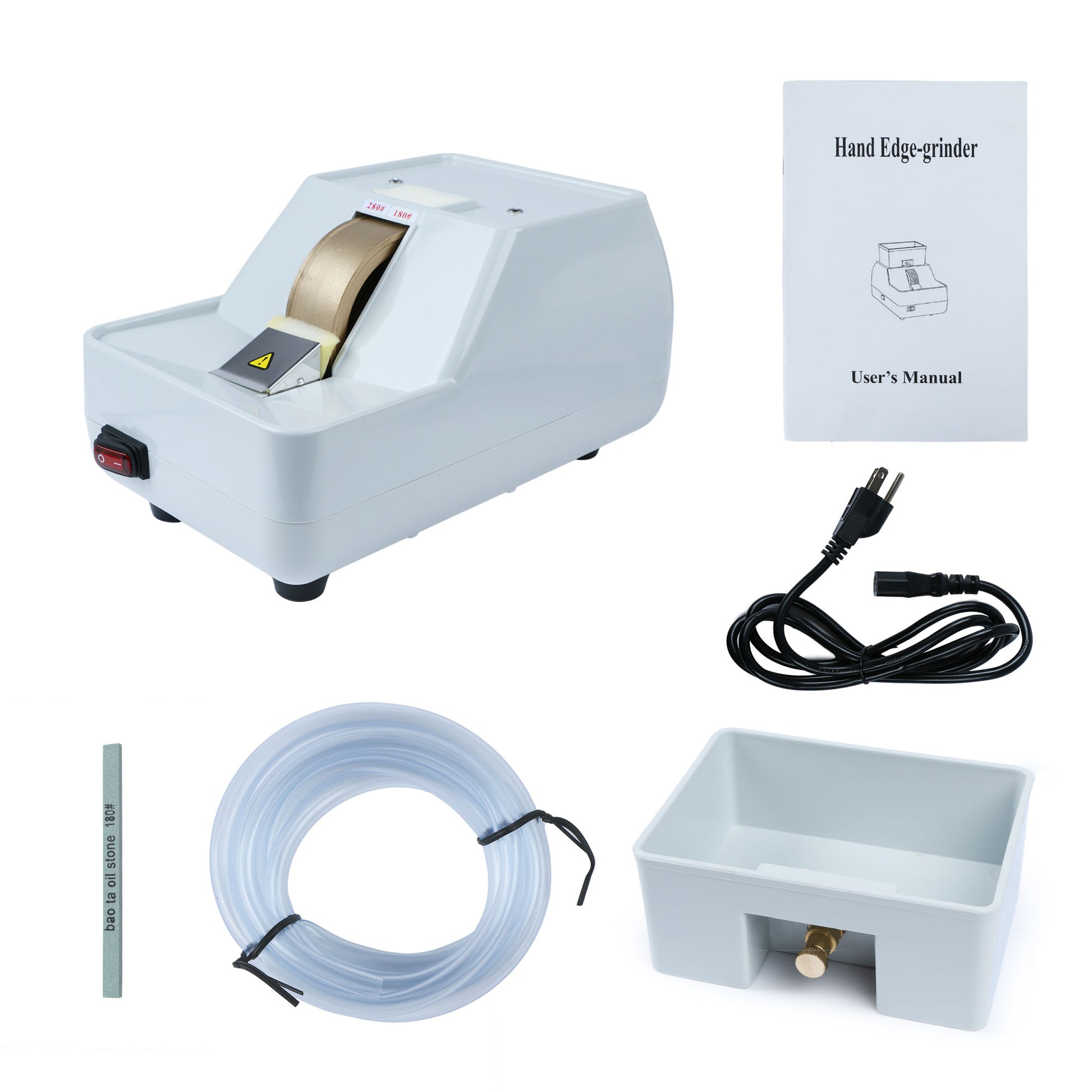

Packing list

Item Quantity Item Quantity
Manual lens edger X 1 Drain pipe X 1
Power cord X 1 Upper water can X 1
Oilstone stick X 1 User's manual X 1

Specifications

Wheel material Adamas
Wheel Size 22.8" x 15.7"/58 x 40 cm
Wheel parameter 35WV, width 35mm, right rough grinding 16 mm, left fine grinding 19 mm, with edge truing groove
Wheel speed 5500-6000 r/min
Available Material PC, CR, glass, stone, cutters

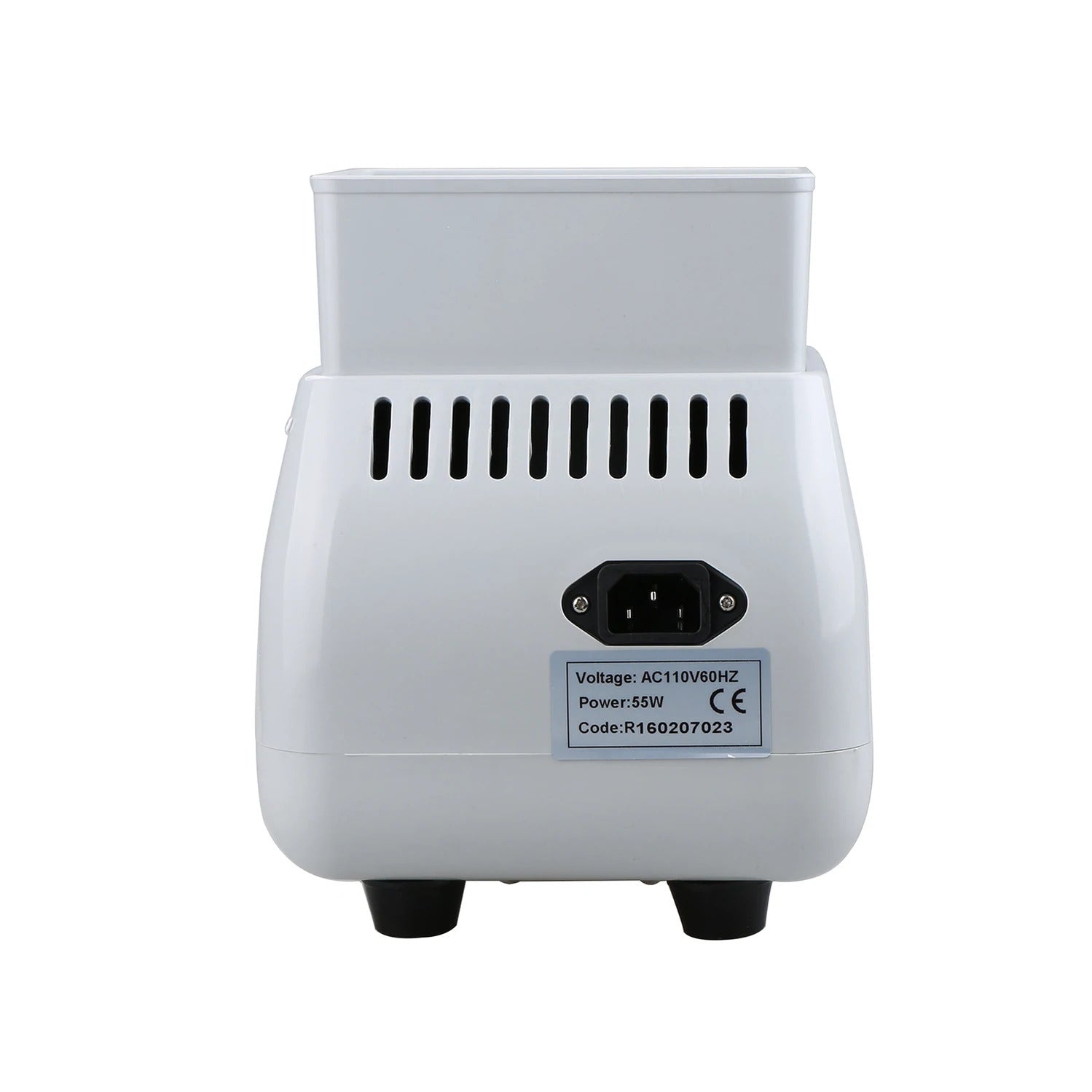

Power Supply AC 110 V/ 60 Hz; 55 W
Dimension 285 x 170 x 225 mm
Weight 5 kg
